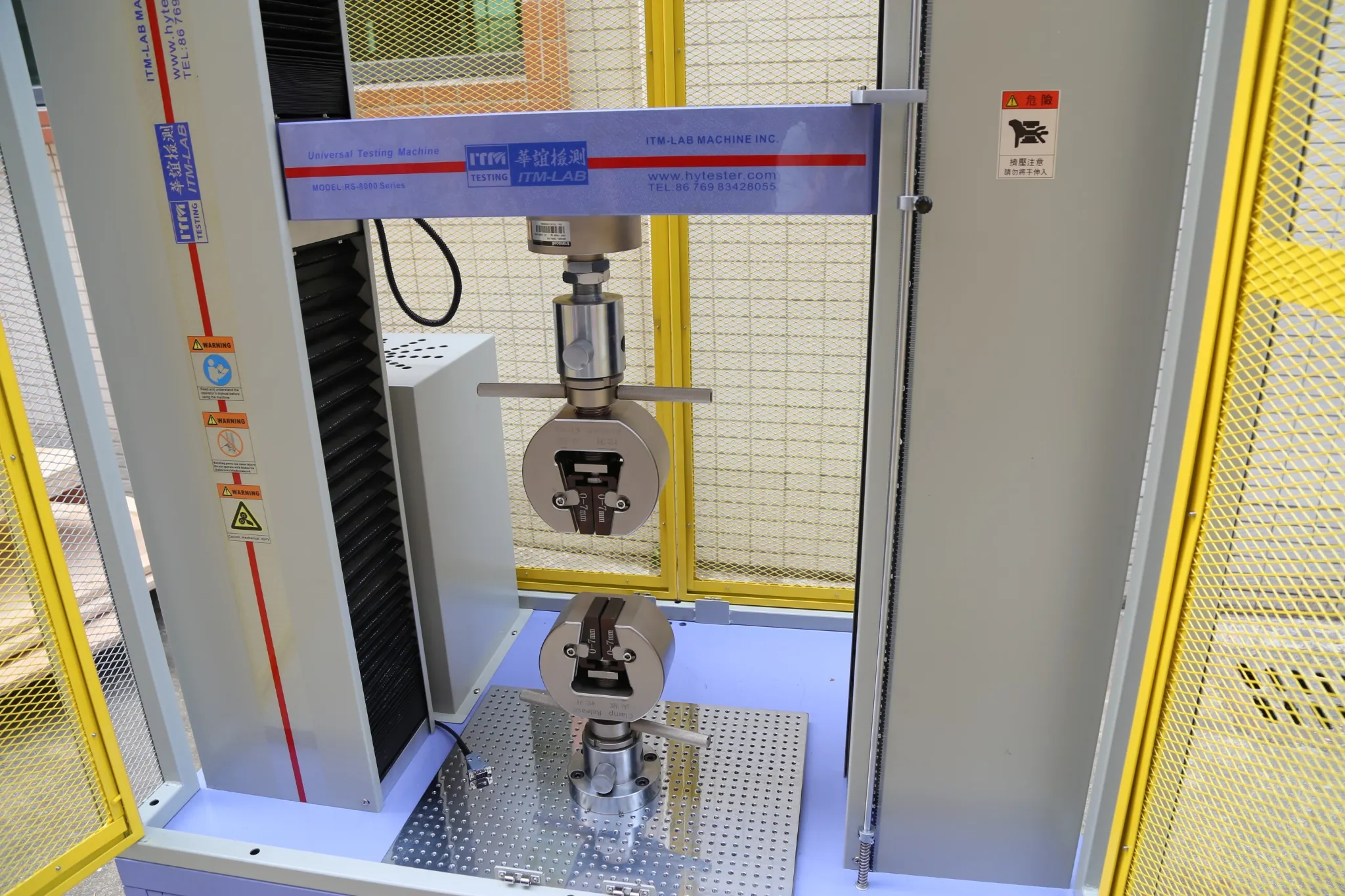

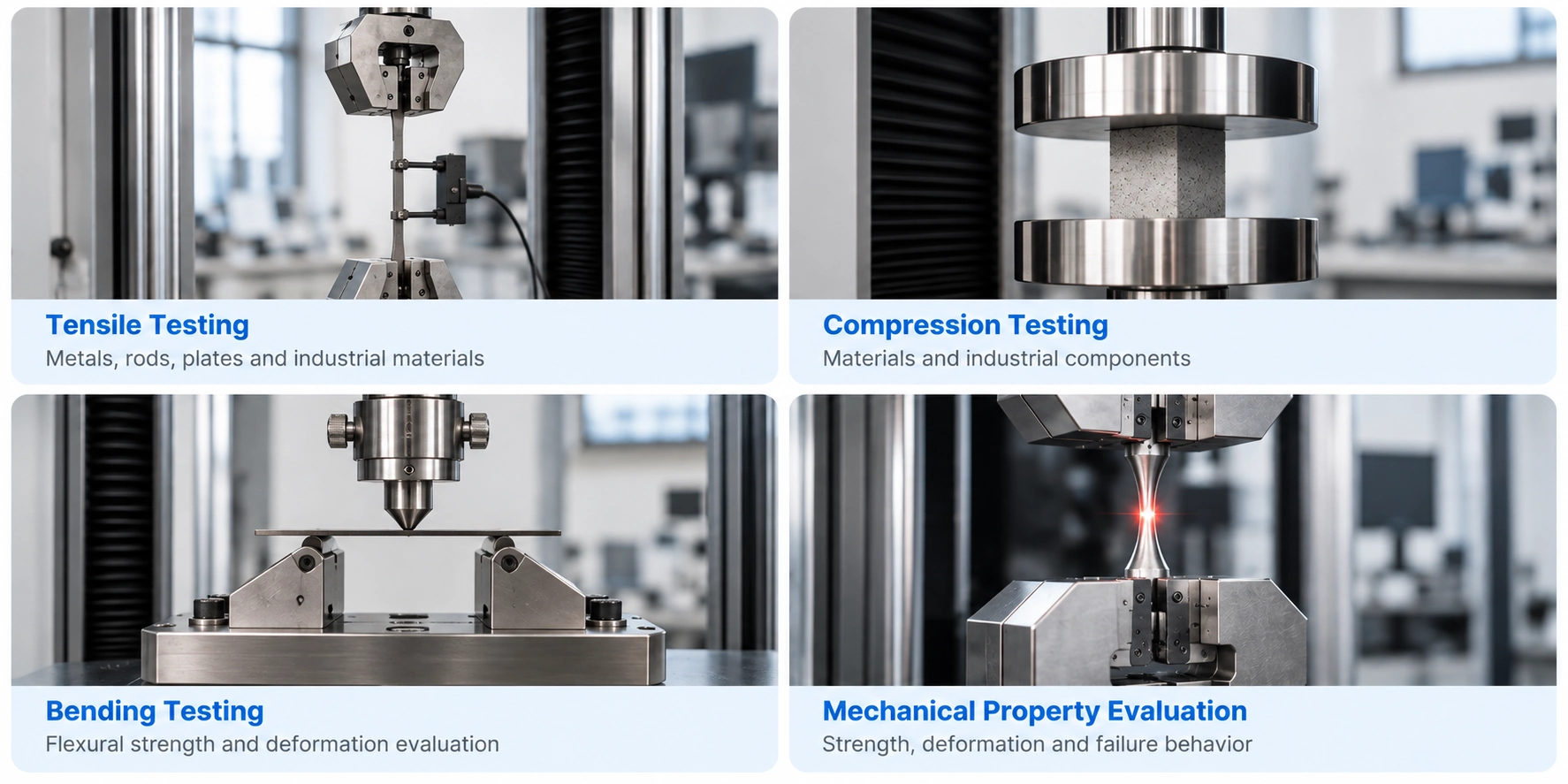

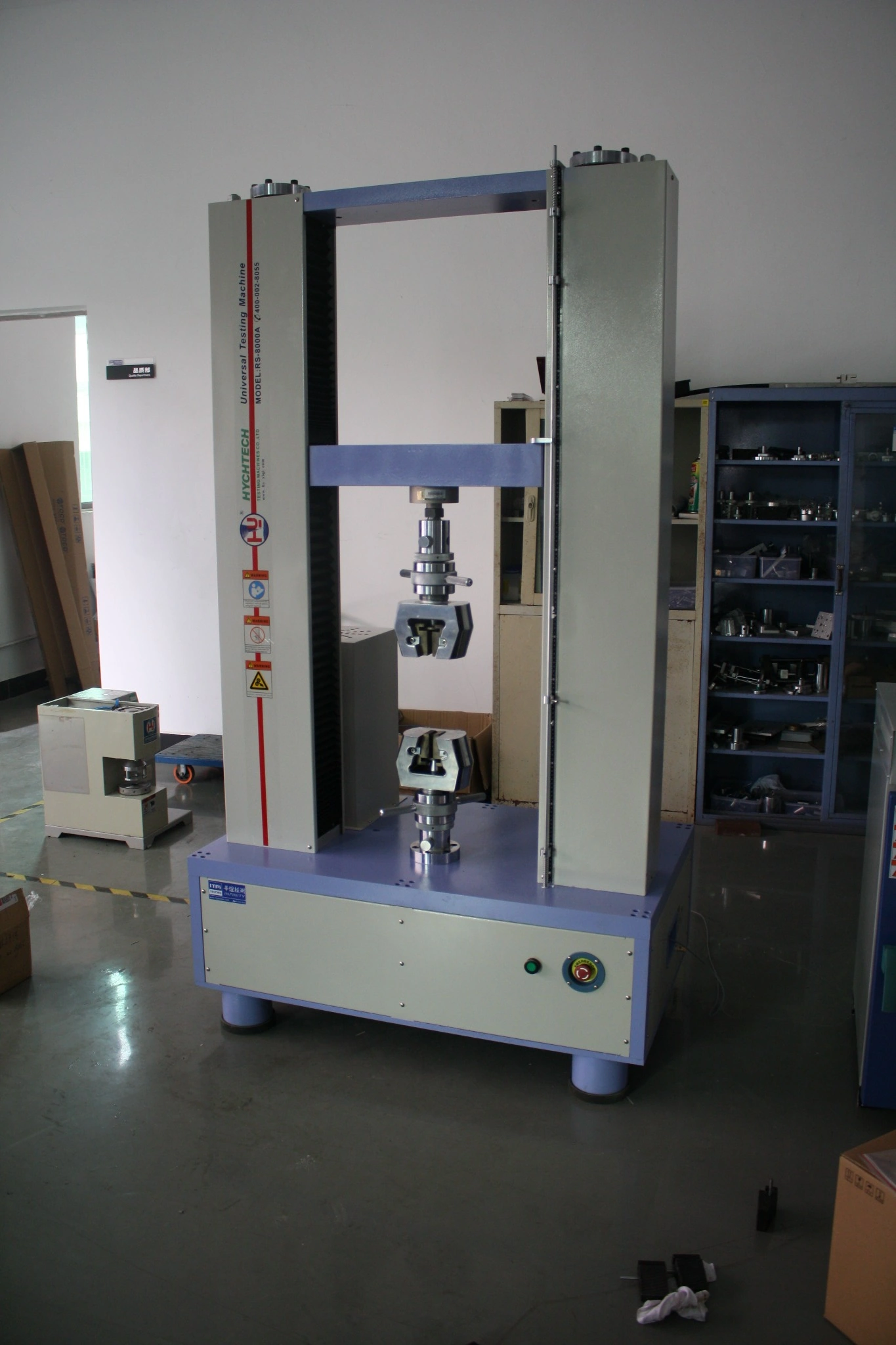

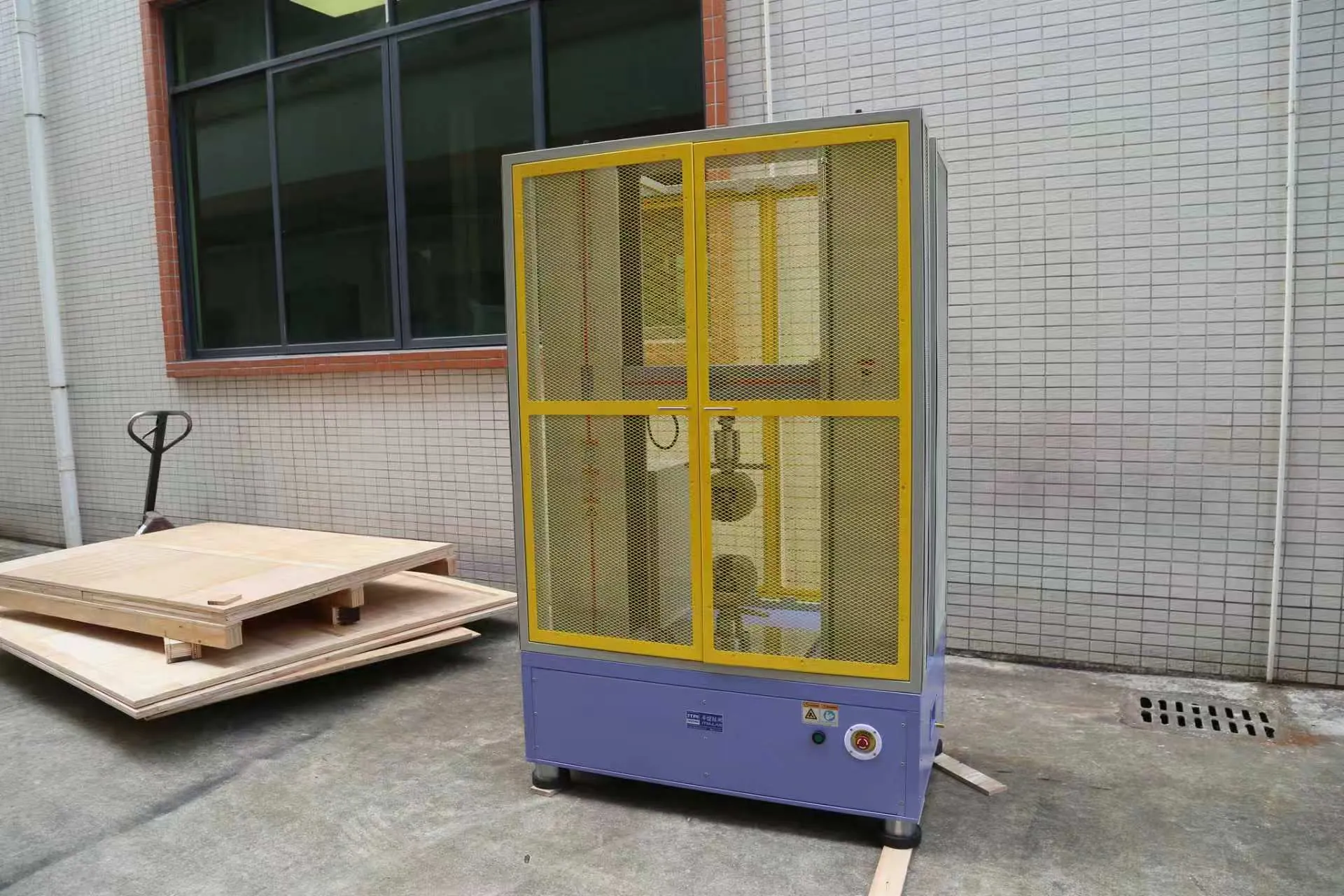

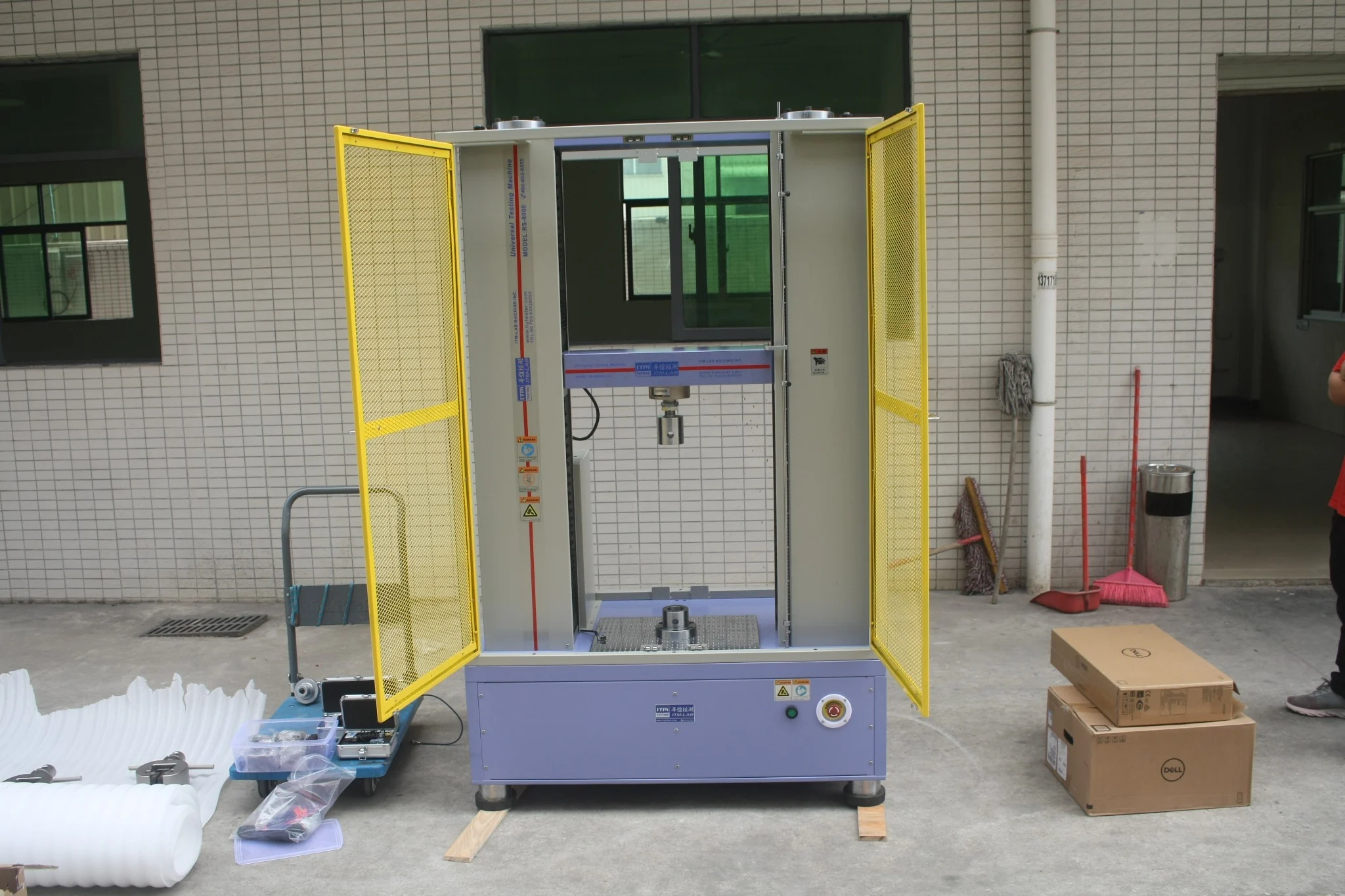

Product Overview: The RS-8000A-100kN Microcomputer-Controlled Universal Testing Machine is designed for precision force testing with a maximum capacity of 100kN. Suitable for tensile, compression, bending, and shear testing, this machine is perfect for industries such as plastic, metal, automotive, construction materials, textiles, and more.
Key Features:
- Maximum Load Capacity: 100kN, for accurate force testing in multiple modes including tensile, compression, bending, and shear.
- High Precision Transmission System: Equipped with high-precision ball screw pairs and a servo motor, ensuring high rigidity and excellent linear movement characteristics.
- Advanced Force Sensor: 100kN force sensor with accuracy within ±0.5%, provided by TRANSCELL, USA.
- Wide Measurement Range: Test force range from 0.4% to 100%FS, ensuring reliability across a variety of materials and tests.
- Displacement Control Accuracy: Displacement measurement accuracy within ±0.50%, ensuring precise measurement.
- Test Width & Stroke: 600mm effective testing width and 1000mm stroke (standard model), accommodating larger samples.

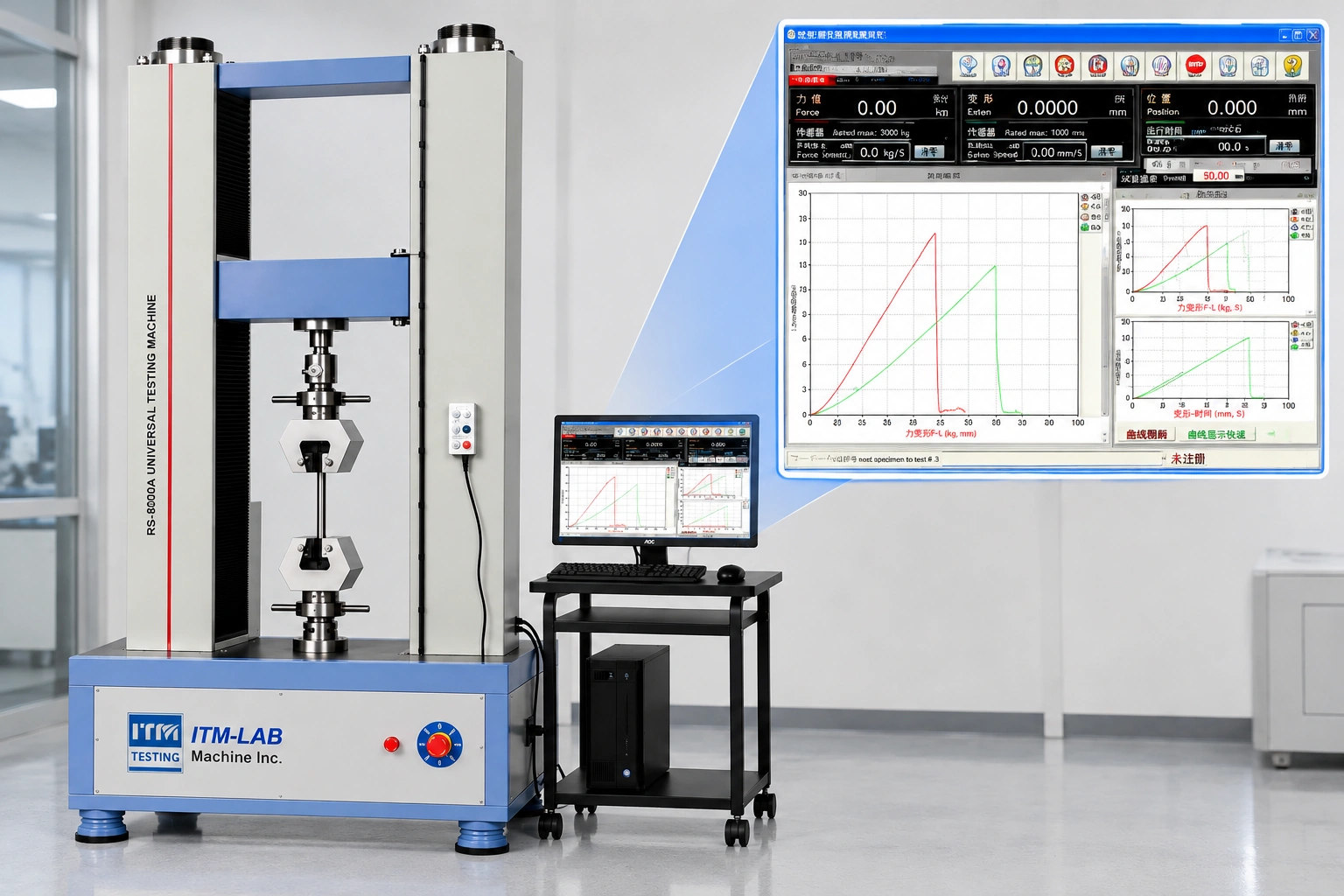

- Intuitive Software Interface: Easy-to-use software suite for a seamless testing experience and supports multiple material testing solutions.
Specifications:
| Model | RS-8000A-100KN |
|---|---|
| Maximum Test Force | 100kN |
| Test Machine Class | 0.5 |
| Test Force Measurement Range | 0.4%～100%FS |
| Test Force Relative Error | ±0.5% |
| Test Force Resolution | 1/500000FS |
| Beam Displacement Relative Error | ±0.50% |
| Displacement Resolution | 0.014μm |
| Beam Speed Adjustment Range | 0.001～250 mm/min |
| Beam Speed Relative Error | ±0.5% of setting value |
| Deformation Control Rate Error | ±2% for rates < 0.05%FS, ±0.5% for rates ≥ 0.05%FS |
| Effective Test Width | 600mm |
| Max Beam Stroke (No Fixtures) | 1000mm |
| Total Dimensions (W×D×H) | 1200mm×720mm×2300mm |
| Power Supply | 220V±10%, 5kW |
| Weight | 1300kg |

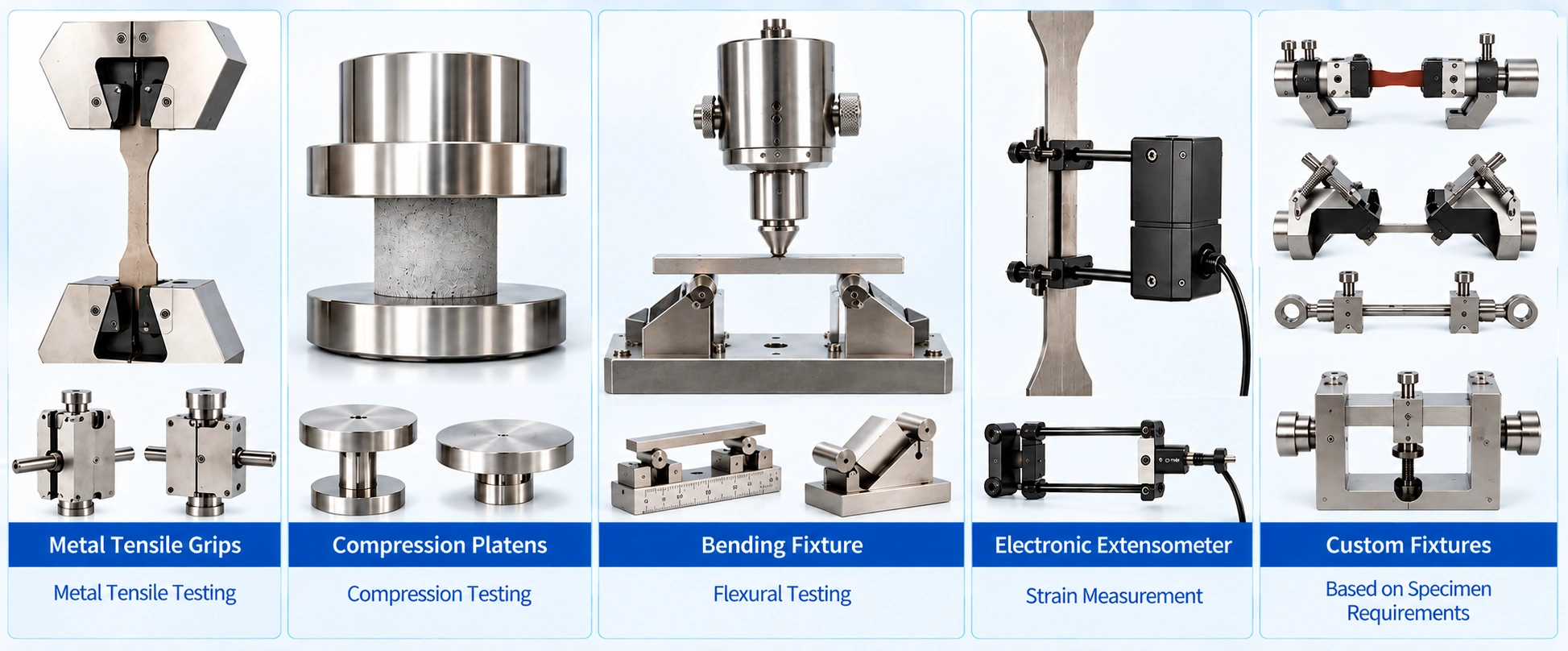

Optional Accessories:
- Compression Fixture (Model RS-15)
- Bending Fixture (Model RS-W)
- Electronic Extensometer
- Color Inkjet Printer
Why Choose RS-8000A-100KN:
- Reliability: With over 26 years of industry experience, we guarantee high-quality materials and manufacturing.
- Versatility: Compatible with a wide range of materials and test requirements.
- User-Friendly: Simplified testing process with intuitive software and precise control options.

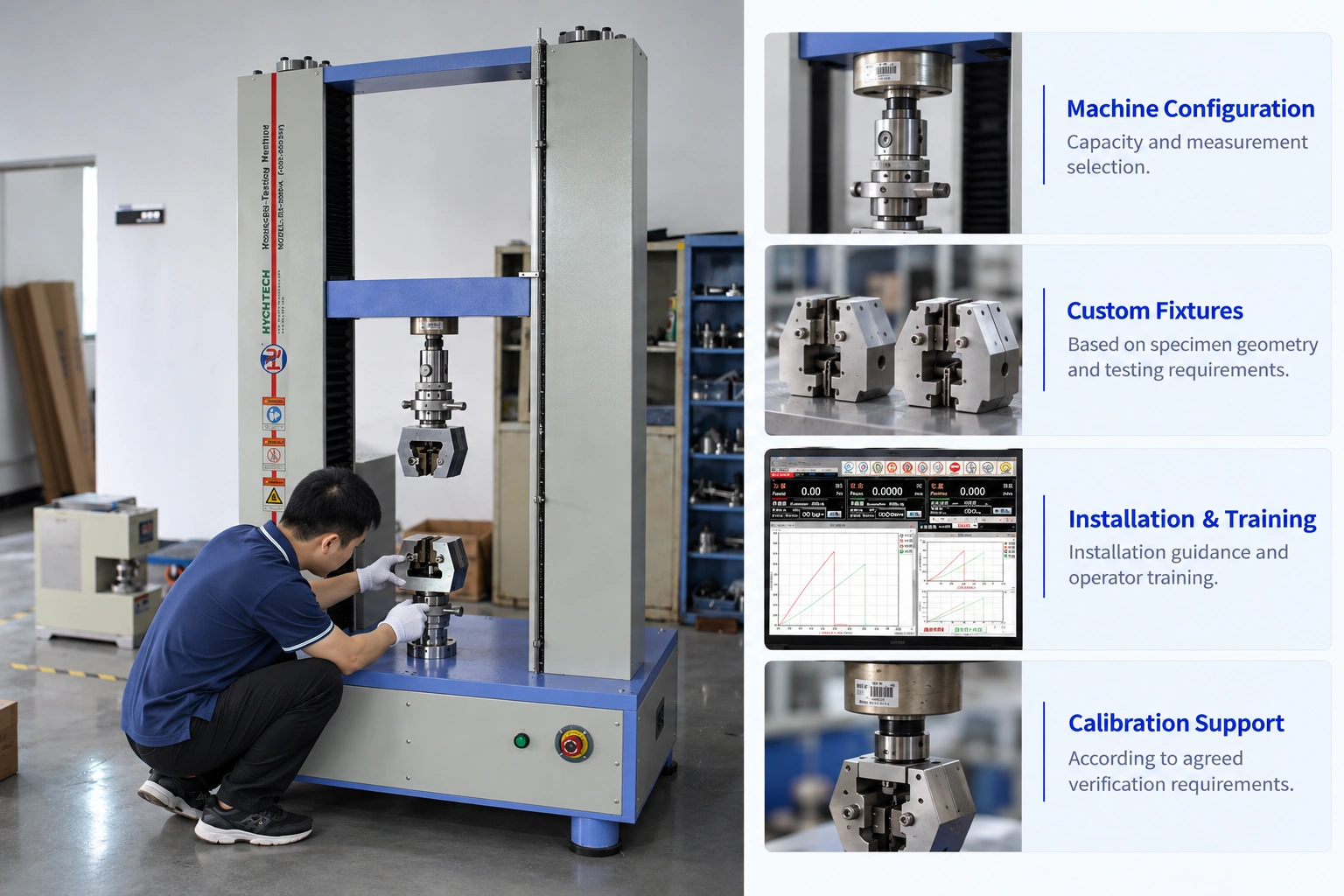

- Comprehensive Support: From installation to after-sales service, we ensure smooth operation and continuous support.
Power System
- High-Quality Servo Motor: The system uses a renowned imported servo motor with a carefully designed transmission structure. The use of a high-quality arc-shaped silent synchronous belt ensures optimal power characteristics, reliability, low maintenance, and excellent force/speed performance.
- Efficient Gear Reducer: The power system includes a well-known brand gear reducer, featuring low noise, low heat generation, and high transmission efficiency, further enhancing the system's overall reliability and performance.
Load Sensor
- Compact Design: Saves vertical testing space, ensuring efficient use of test area.
- Safe Load: 150% of rated load capacity, ensuring durability and reliability during heavy tests.
- Excellent Linearity: Superior linearity under both tensile and compression loads.
- High Rigidity: Both longitudinal and lateral rigidity are exceptionally high for stable measurements.
- Accuracy Across Full Range: The load sensor maintains high precision from 0.4% to full scale without any loss of accuracy.
- Load Accuracy: The sensor’s accuracy is within 0.5% of the indicated load, ensuring precise and reliable results.
