This UTM are suitable for the testing of tensile,compression,shearing force,adhesion,peeling force,tear strength etc for semiproduct&finished product in the field of rubber,plastic,metal,nylon,fabric,paper,aviation,packing,architecture,petrochemistry,electric appliance,automobile,etc,which are the basic facilities for input quality control(I.Q.C),Quality Control(Q.C),Physical inspection,Mechanics research and material development.
GB/T228-2002,GB/T14452-93,ASTM D638-03,ASTM D790-07,GB/T292,ASTM D3330-04,ASTM D1894-06.
| Capacity(optional) | 100N,200N,500N,1KN,2KN |
| Unit(switchable) | N,KN,Kgf,Lbf |
| Dynamic system | PanasonicRAC servo motor+ShimpoRgear reducer+MitsubishiRsynchronous belt+TBIRBall screw |
| Load cell accuracy | ±0.01%F.S |
| Load resolution | 1/500,000 |
| Level of the accuracy | ±0.5% |
| Measurement accuracy | ±0.5%F.S |
| Effective range | 0.2%~100%F.S |
| Stroke resolution | 0.0001mm |
| Stroke measurement accuracy | Less than ±0.5% of the display |
| Deformation resolution | 0.0001mm |
| Deromation measurement accuracy | Less than±0.5% of the display |
| Stroke (exclude the grips) | 1000mm |
| Effective width | 400mm |
| Test speed | 0.001-500mm/min |
| Speed accuracy | ±0.5% |
| Deformation measurement (purchasing additional) | Large deformation:10-1000mm, Electronic extensometer:gauge length-25mm,deformation 25mm |
| Fixtrue | Tensile,compression,peeing force |
| X-Y axis mobile test platform | X axis:0-350mm |
| Limiting Protection | Mechanical limit |
| Overload Protection | Over maximum load 10%,machine protection |
| Main unit dimension(WxDxH) | W800*D1080*H1720mm |
| Main unit weight | 175kg |
| Power | AC220V 5A |
| Noise | 5mm/min 55db(A)/500mm/min 68db(A) |
This equipment is designed for testing the friction coefficient of glass, plastic film, paper, metal and other products. The purpose is to drive the sample to one side of the platform through the transmission mechanism, apply a slider to the surface of the sample, and then measure the static friction coefficient and dynamic friction coefficient of the sample and the slider through the force measurement system to obtain the friction coefficient of different batches of products. By measuring the smoothness of the material, the production quality process index can be controlled and adjusted to meet the requirements of product use.
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable & thread, textile, net rope, non-woven fabrics ect nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do stretching, compression, bending, peeling, cutting, tearing tests.
The dynamic fatigue testing machine is primarily used for testing the dynamic and static mechanical properties of various metallic materials, non-metallic materials, components, elastomers, rubber elasticity and dampers, composite materials, and lithium battery core poles. It can perform tensile, compression, bending, low-cycle and high-cycle fatigue, crack propagation, and fracture mechanics tests under sine wave, triangle wave, square wave, trapezoidal wave, ramp wave, sawtooth wave, and user-defined conditions.
Purpose:
This machine is suitable for mobile phone, tablet computer, electronic dictionary, e-book, charger, car door lock, rotating shaft and other products to do torque test
product use:
This machine is suitable for various connectors for insertion force and pull out force test, equipped with automatic centering device with a variety of connector special fixtures, can get completely accurate insertion and pulling force results
Apply for tensile, compress, bending, peel, tearing, peeling, bursting, fatigue test on metal rod, metal plate, rubber, PU, leather, plastic, foam, sponge, water-proof material, cable, wire, fabric, nettle, non-woven, etc.
Intelligent integrated design
10.2"touch control computer based on windows 10 system is equipped with Intel i7 CPU, which has extraordinary calculation and processing ability, supports the sampling frequency up to 1000HZ, and the test data curve can be automatically saved.
Desktop design
can greatly save laboratory space, small body, big strength, maximum support 5KN testing.
High rigid body design
The diplacement resolution is 0.001mm and the accuracy is within ± 0.02+0.0011mm（L= any length mm）. The accuracy of force value is better than ±0.25%.
Optimize key parts
The machine adopts Japan Panasonic servo motor + SHIMPO planetary reducer + THK precision linear guide + THK ball screw are used to optimize key parts to ensure repeated positioning accuracy, high speed, low noise and durable use.
A variety of test modes
such as tensile, compression, bending, stripping and other test software packages, or connector insertion and pull-out force test software package, or key load test software package, specific consulting relevant business personnel.
With multi force channel function
the system adopts Japan NTS precision load cell, and can calibrate 5 sensors of different specifications, which is suitable for more test items.

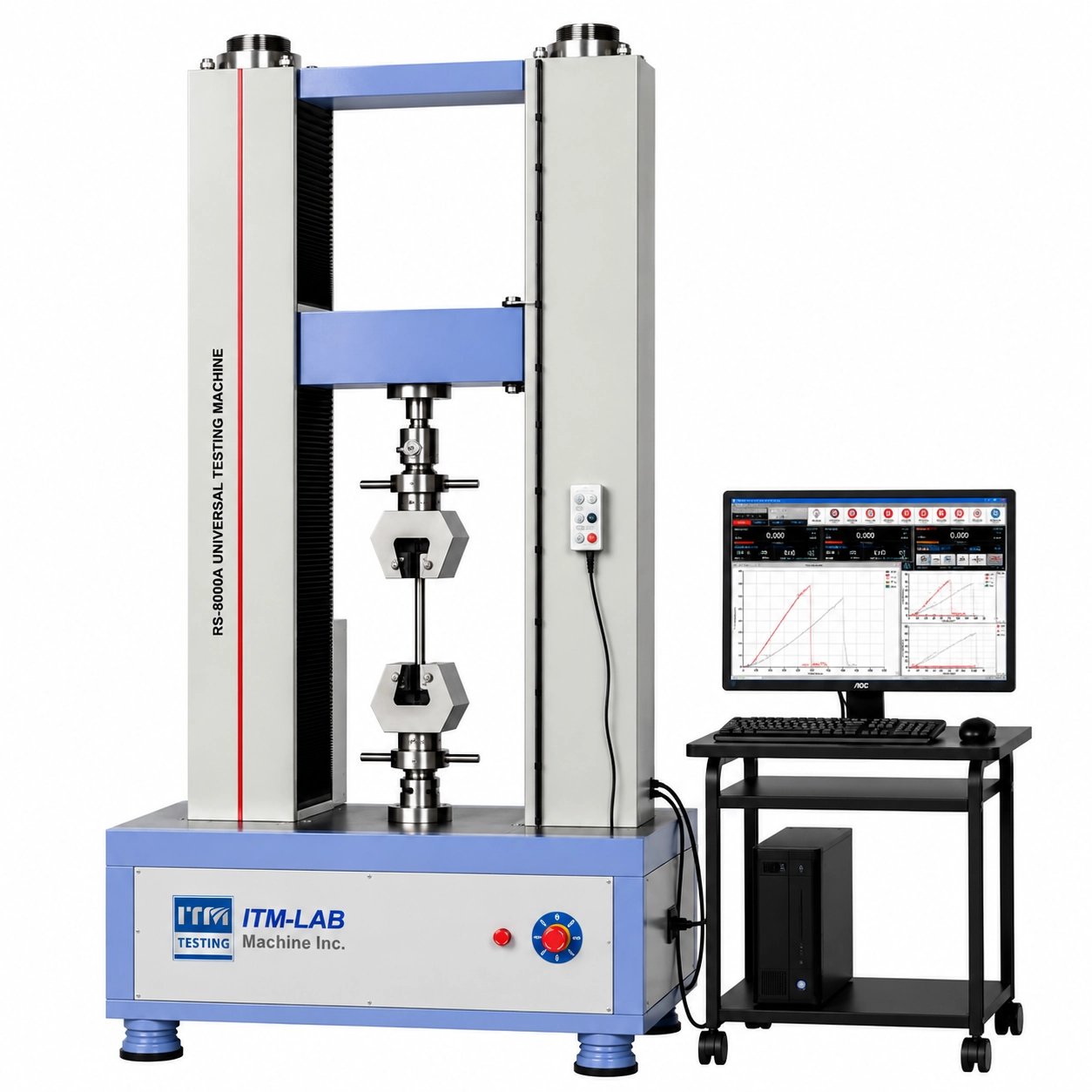

Application: RS-8000A series gantry microcomputer controlled electronic universal testing machine can be used for tensile, compression, bending, shear and other force testing with a maximum load of 100kN.
